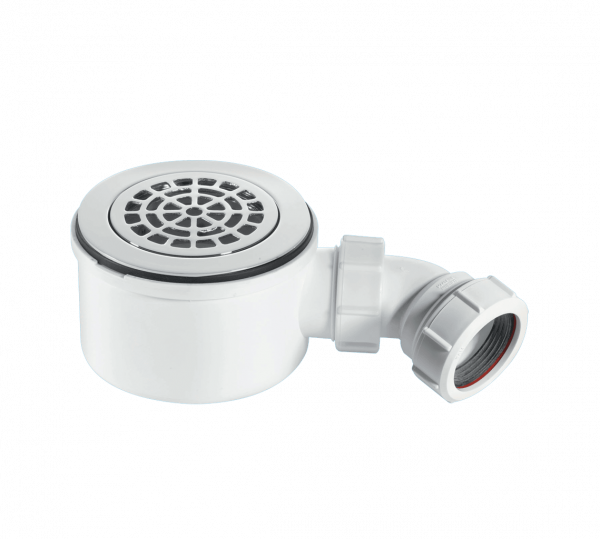

McAlpine 90mm Shallow Shower Trap – 70mm High ST90CPB-P-70
In Stock
Available 2-3 days
Product Description
90mm x 50mm Water Seal Shower Trap with 1½” Outlet. Flange - CP Brass - Petal
In Stock
Product Description
90mm x 50mm Water Seal Shower Trap with 1½” Outlet. Flange – CP Brass – Petal
Specification
Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
Suitable for shower trays with a 90mm waste hole
50mm Water Seal
1½” BSP Thread
Supplied with 135° Bend – BSP coupling nut x 1½” Universal
Removable 110mm flange facilitates easy cleaning
Flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
Overall height is only 70mm
Constructed from polypropylene
Conforms to EN 274-1:2002
70mm under-tray dimension
Traps ST90CP10-70, ST90CB10-70 and ST90WH10-70 are suitable for tray thickness 0-23mm
Traps ST90CPB-P-70 and ST90CPB-S-70 are suitable for tray thickness 5-30mm
