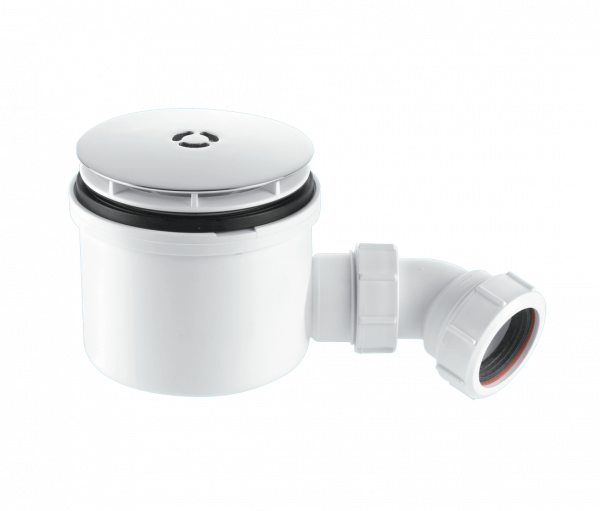

McAlpine 1½” 90mm Hi-Flow Shower Trap ST90CB10-HP2
In Stock
Available 2-3 days
Product Description
90mm x 50mm Water Seal Shower Trap with 1½” Outlet High-Flow High-Performance Trap with removable 110mm Flange. Flange - CP Brass &n...
In Stock
Product Description
90mm x 50mm Water Seal Shower Trap with 1½” Outlet High-Flow High-Performance Trap with removable 110mm Flange. Flange – CP Brass
Specification
Suitable for shower trays with a 90mm waste hole
50mm Water Seal
To suit 1 ½” UK Pipe
Supplied with 135° Bend – BSP coupling nut x 1½” Universal
Removable 110mm flange facilitates easy cleaning
Flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
Overall height 90mm
Constructed from polypropylene
90mm under-tray dimension
Traps ST90CP10-HP2, ST90CB10-HP2 and ST90WH10-HP2 are suitable for tray thickness 4-15mm
Traps ST90CPB-P-HP2 and ST90CPB-S-HP2 are suitable for tray thickness 5-14mm
Traps ST90CPB-P-HP and ST90CPB-S-HP are suitable for tray thickness 5-14mm
Note: Longer flanges are available to suit thicker trays
For Product codes ST90CP10-HP, ST90CB10-HP, and ST90WH10-HP, additional longer flange code is: STW9050WSTBDY-43MM.
This flange is suitable for tray thickness of 21-29mm
For product code ST90CPB-P-HP, additional longer flange code is: P-CPB-ST90-P50-43. This flange is suitable for tray thickness of 21-30mm
For product code ST90CPB-S-HP, additional longer flange code is: P-CPB-ST90-S50-43. This flange is suitable for tray thickness of 21-30mm
